Mastering WS-12 Solubility: Solving the Recrystallization Challenge

Mastering WS-12 Solubility: Solving the Recrystallization Challenge

For high-end product formulators, Cooling Agent WS-12 is the premier choice for achieving intense, long-lasting physiological cooling. However, WS-12 is notoriously difficult to handle. Its high lipophilicity means it resists water and presents significant solubility hurdles even in common solvents like Propylene Glycol (PG).

In this technical guide, we address the reality of WS-12 dissolution, the risks of recrystallization, and why synergistic blending is the only reliable path to a stable formulation.

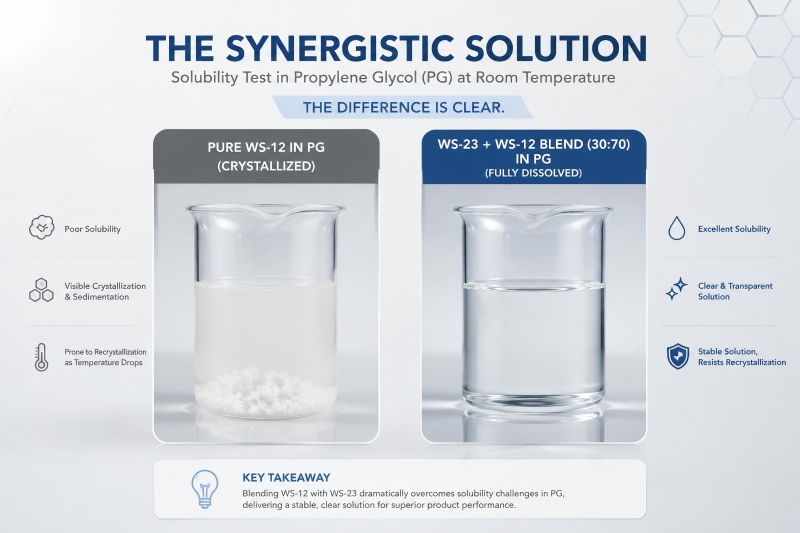

Visual proof: Pure WS-12 often fails to remain stable in PG at room temperature, while synergistic blends maintain perfect clarity.

1. The Truth About Dissolving WS-12 in Solvents

Many technical sheets claim WS-12 is soluble in PG, but they often omit the operational difficulty. In real-world manufacturing, achieving and maintaining a clear solution is a two-step challenge.

• Propylene Glycol (PG) - The Temperature Threshold: Pure WS-12 will not dissolve in PG at room temperature. It requires sustained heating to 50°C - 60°C and high-shear agitation. Warning: Even after dissolution, WS-12 is highly prone to "crashing out" (recrystallization) as the solution cools, unless the concentration is strictly controlled.
• Ethanol (Food-Grade): Provides a significantly higher solubility ceiling and faster dissolution. This is the preferred carrier for high-potency oral care concentrates and mouthwashes.
• MCT Oil (Lipid Carrier): For cosmetics and lipid-based confectionery, MCT oil is the superior host. It offers excellent thermal stability and virtually eliminates the risk of recrystallization.

2. Synergistic Blending: The Stability Secret

To overcome the inherent solubility limits of WS-12, professional formulators utilize synergistic blending. By pairing WS-12 with highly soluble agents like WS-23, you create a "solubility bridge" that stabilizes the entire system while providing a multi-dimensional cooling curve.

3. Optimized Applications: From Candy to Cosmetics

Where liquid solubility remains a logistical barrier, dry-state applications allow WS-12 to shine without compromise.

Pressed Candy & Sugar-Free Mints: In tableted confectionery, WS-12 can be dry-blended directly with Sorbitol or Xylitol. This eliminates the need for solvents and allows the consumer’s saliva to slowly release the cooling effect, providing sustained freshness that outlasts liquid-based alternatives.

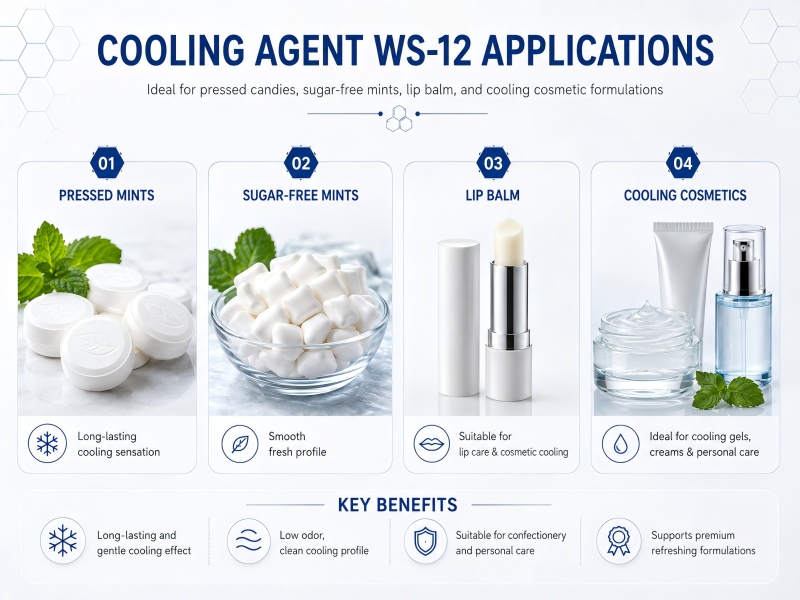

Ideal delivery systems: Dry blending in pressed mints or utilizing lipid carriers in cosmetics bypasses liquid solubility issues entirely.

Technical FAQ

What is the flash point of Cooling Agent WS-12?
WS-12 is a stable crystalline powder with a high flash point (above 100°C), making it exceptionally safe for high-temperature sugar-boiling and confectionery processes.

Why is WS-12 preferred for pressed mints over WS-23?
WS-12 has a much higher cooling intensity and longer duration. In a pressed tablet, its slow dissolution provides a "freshness tail" that persists for up to 20 minutes, which is the gold standard for premium mints.

How can I prevent WS-12 from crashing out of my PG flavor base?
Maintain a temperature above 50°C during mixing and, most importantly, blend WS-12 with WS-3 or WS-23. The interaction between these molecules significantly lowers the crystallization point of the final solution.
